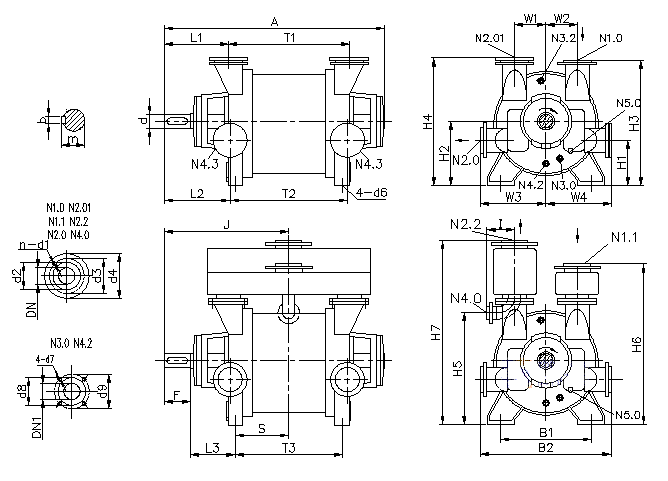

2BE1 303/305/306/353/355/356泵頭安裝尺寸
N1.0進氣端法蘭 N1.1連通管法蘭 N2.0排氣端法蘭 N2.01上置排氣法蘭
N2.2分離器法蘭 N3.0工作液接口 N3.2填料函密封液接口
N4.0分離器排液口 N4.2沖洗、排液口 N4.3泄漏液排放口 N5.0自動溢流閥
|
代號
|
A
|
B1
|
B2
|
b
|
DN1
|
d
|
d6
|
d7
|
d8
|
d9
|
F
|
H1
|
H2
|
H3
|
H4
|
H5
|
H6
|
|
|
2BE1 303
|
1580
|
670
|
1010
|
28
|
25
|
100
|
35
|
M12
|
68
|
85
|
165
|
335
|
475
|
910
|
935
|
825
|
1185
|
|
|
2BE1 305/306
|
1690
|
670
|
1010
|
28
|
25
|
100
|
35
|
M12
|
68
|
85
|
165
|
335
|
475
|
910
|
935
|
825
|
1185
|
|
|
2BE1 353
|
1745
|
800
|
1160
|
32
|
32
|
120
|
35
|
M12
|
78
|
100
|
165
|
395
|
560
|
1050
|
1080
|
930
|
1370
|
|
|
2BE1 355/356
|
1885
|
800
|
1160
|
32
|
32
|
120
|
35
|
M12
|
78
|
100
|
165
|
395
|
560
|
1050
|
1080
|
930
|
1370
|
|
|
代號
|
H7
|
I
|
J
|
L1
|
L2
|
L3
|
m
|
S
|
T1
|
T2
|
T3
|
W1
|
W2
|
W3
|
W4
|
N3.2
|
N4.3
|
|
|
2BE1 303
|
1360
|
205
|
875
|
430
|
443
|
315
|
106
|
395
|
890
|
864
|
790
|
230
|
230
|
480
|
505
|
G1/2"
|
G1/2"
|
|
|
2BE1 305/306
|
1360
|
205
|
930
|
430
|
443
|
315
|
106
|
450
|
1000
|
974
|
900
|
230
|
230
|
480
|
505
|
G1/2"
|
G1/2"
|
|
|
2BE1 353
|
1570
|
245
|
955
|
430
|
455
|
335
|
127
|
455
|
1050
|
1000
|
910
|
285
|
285
|
555
|
580
|
G1/2"
|
G1/2"
|
|
|
2BE1 355/356
|
1570
|
245
|
1025
|
430
|
455
|
335
|
127
|
525
|
1190
|
1140
|
1050
|
285
|
285
|
555
|
580
|
G1/2"
|
G1/2"
|
|
|
代號
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
代號
|
DN
|
d1
|
d2
|
d3
|
d4
|
n
|
|
|
|||
|
2BE1 303
2BE1 305 2BE1 306 |
N1.0
N2.01 |
150
|
22
|
212
|
240
|
285
|
8
|
2BE1 353
2BE1 355 2BE1 356 |
N1.0
N2.01 |
200
|
22
|
268
|
295
|
340
|
8
|
|
|
|
|
N1.1
N2.2 |
200
|
22
|
268
|
295
|
340
|
8
|
N1.1
N2.2 |
250
|
22
|
320
|
350
|
395
|
12
|
|
|
|||
|
N2.0
|
125
|
18
|
188
|
210
|
250
|
8
|
N2.0
|
150
|
22
|
212
|
240
|
285
|
8
|
|
|
|||
|
N4.0
|
100
|
18
|
158
|
180
|
220
|
8
|
N4.0
|
125
|
18
|
188
|
210
|
250
|
8
|
|
|
|||
